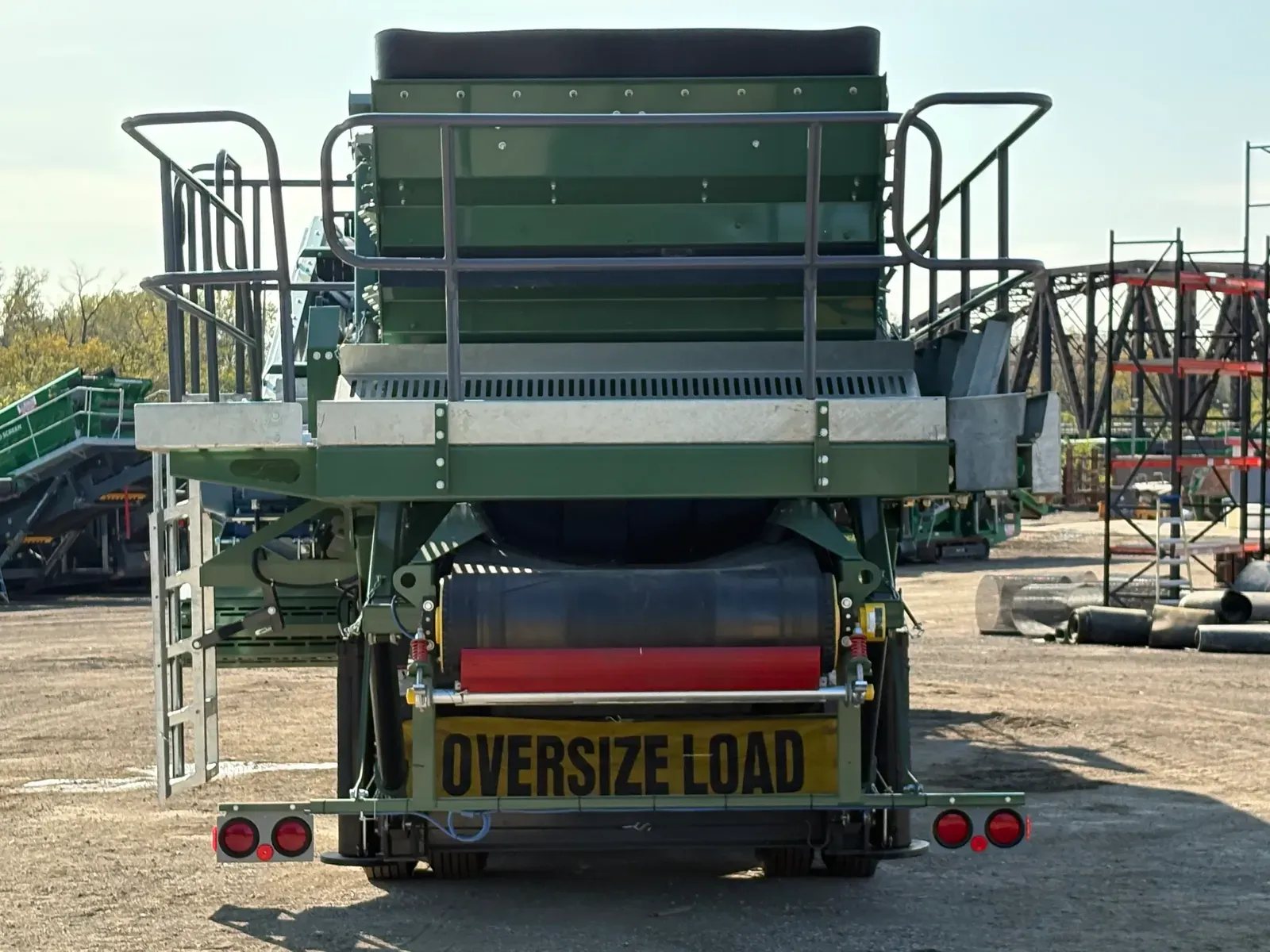

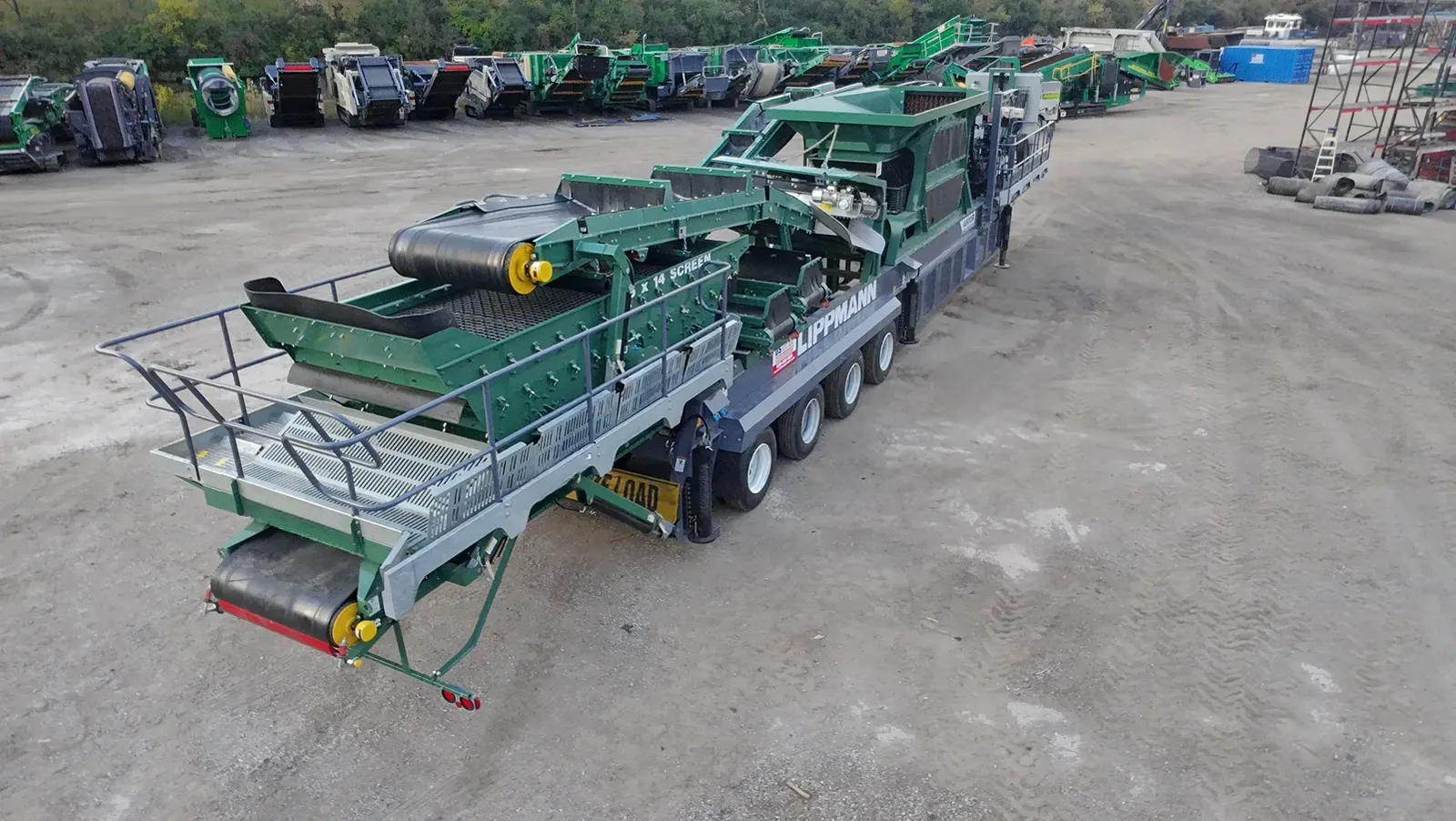

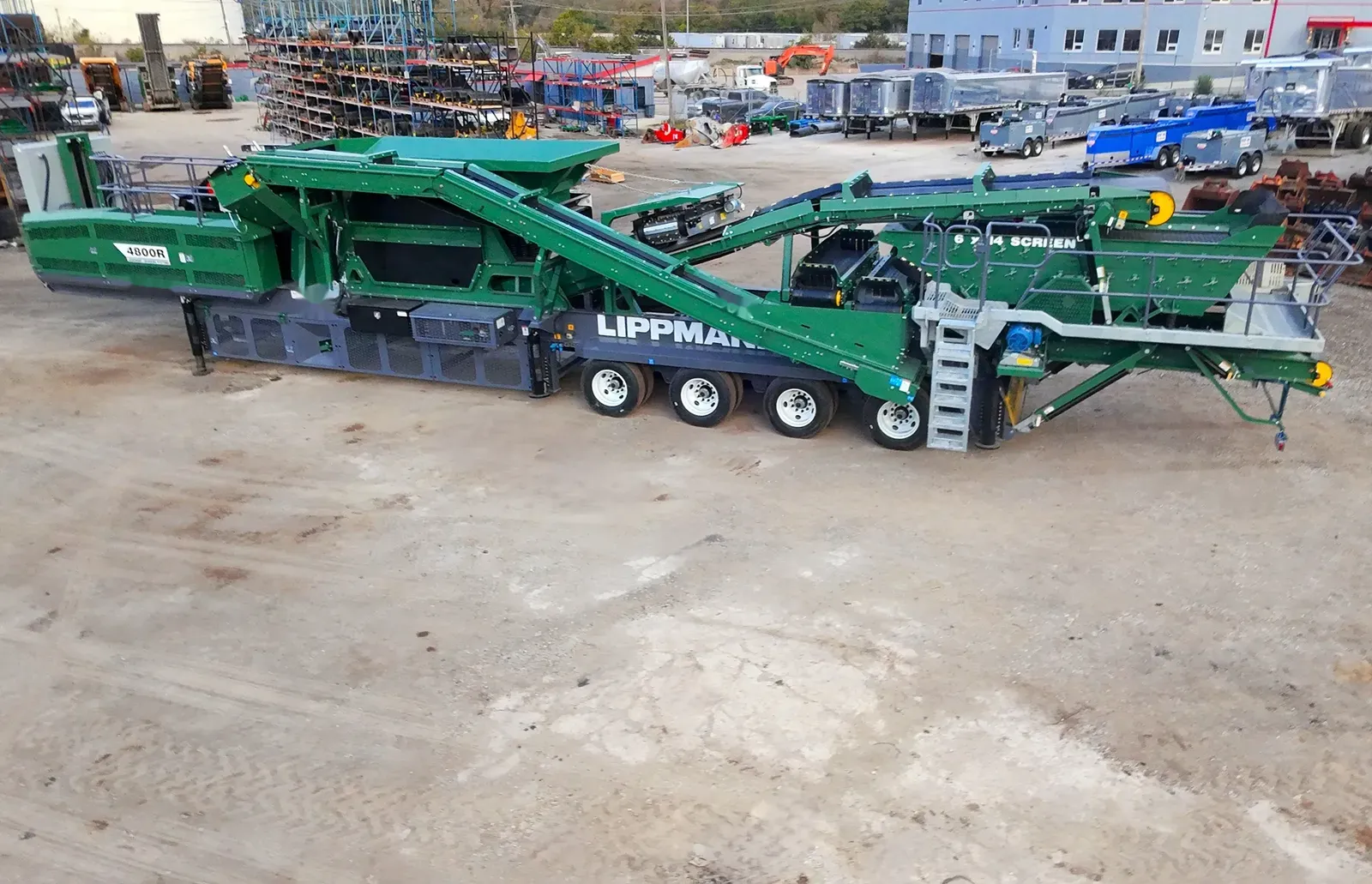

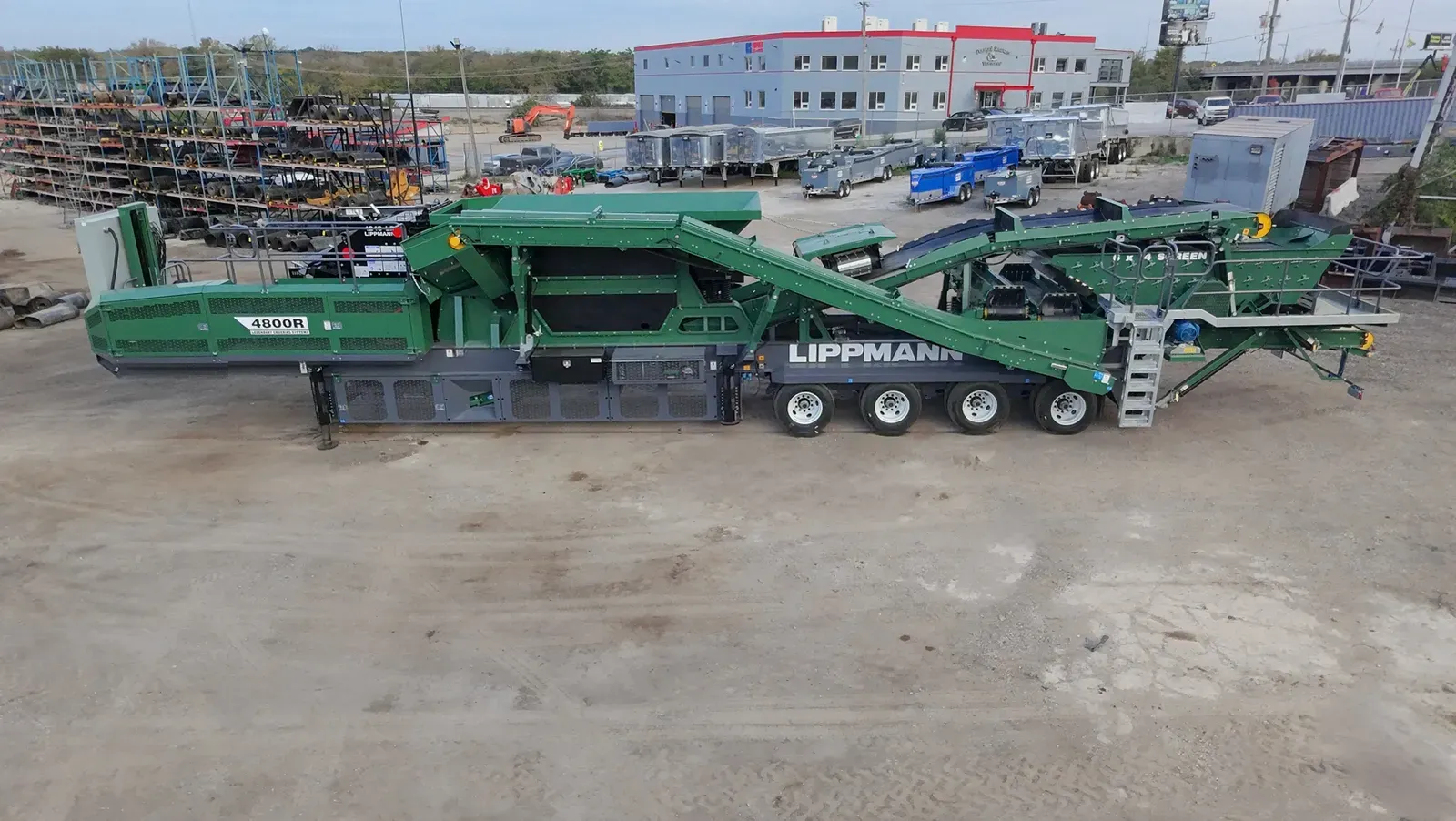

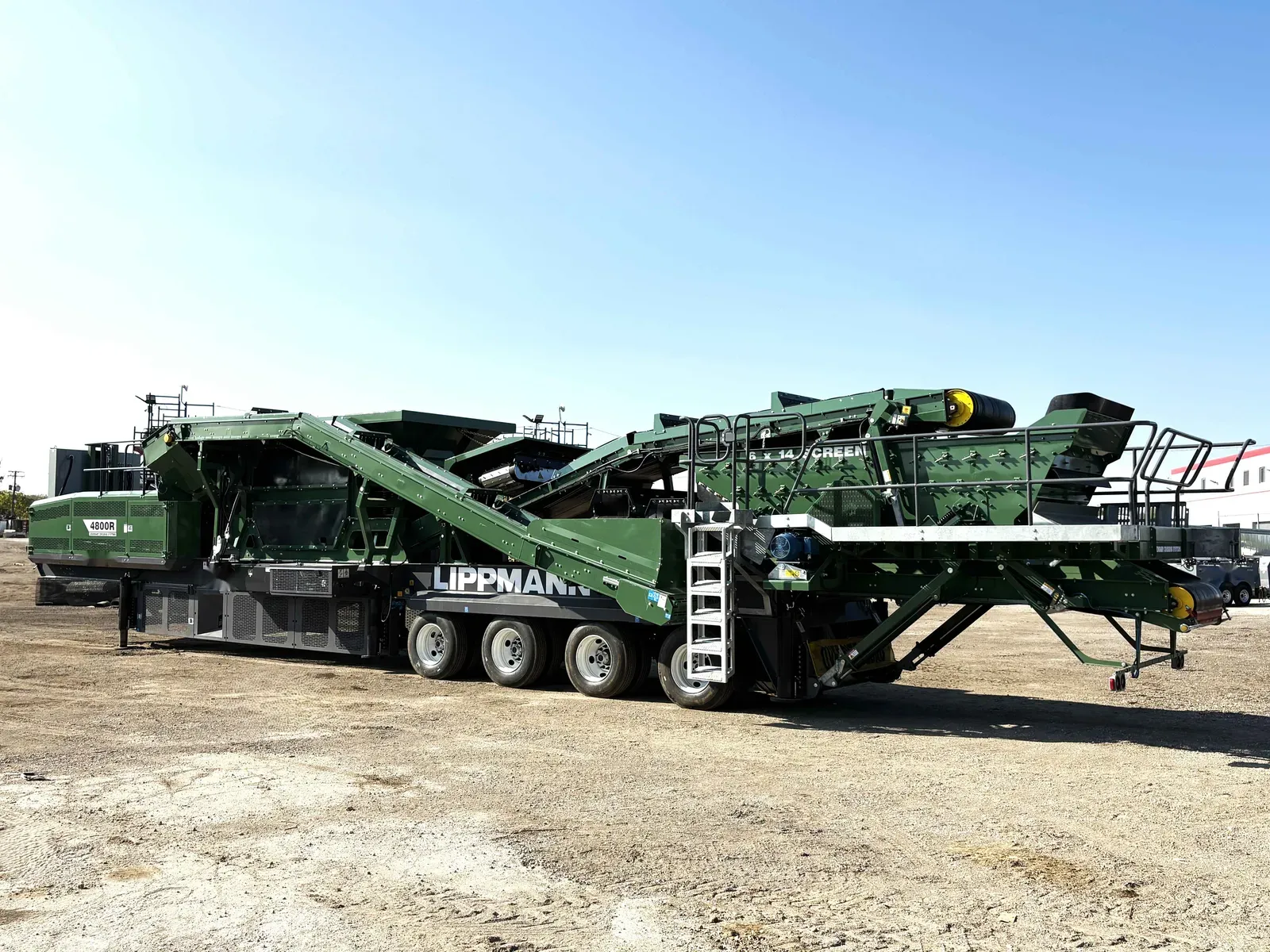

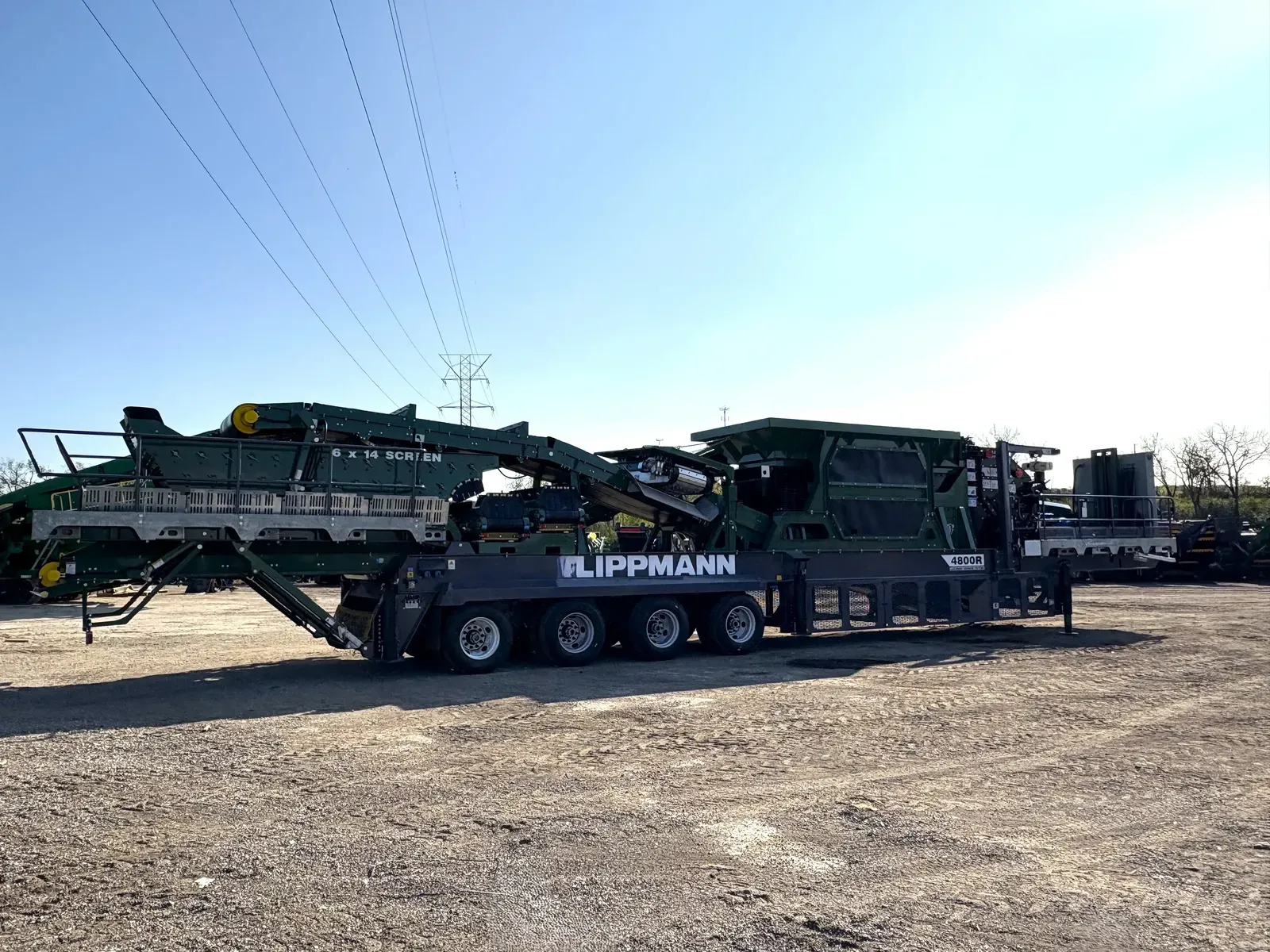

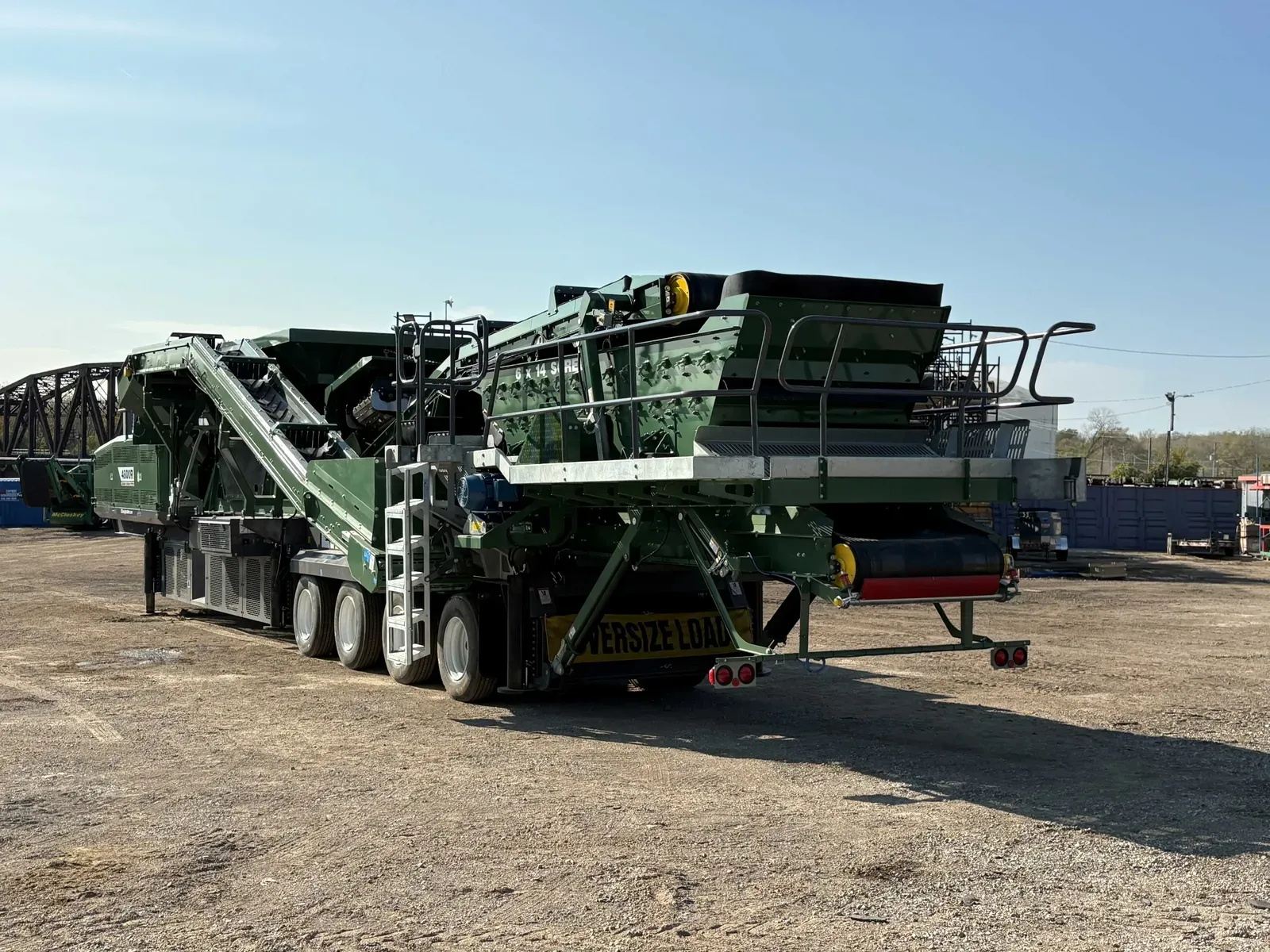

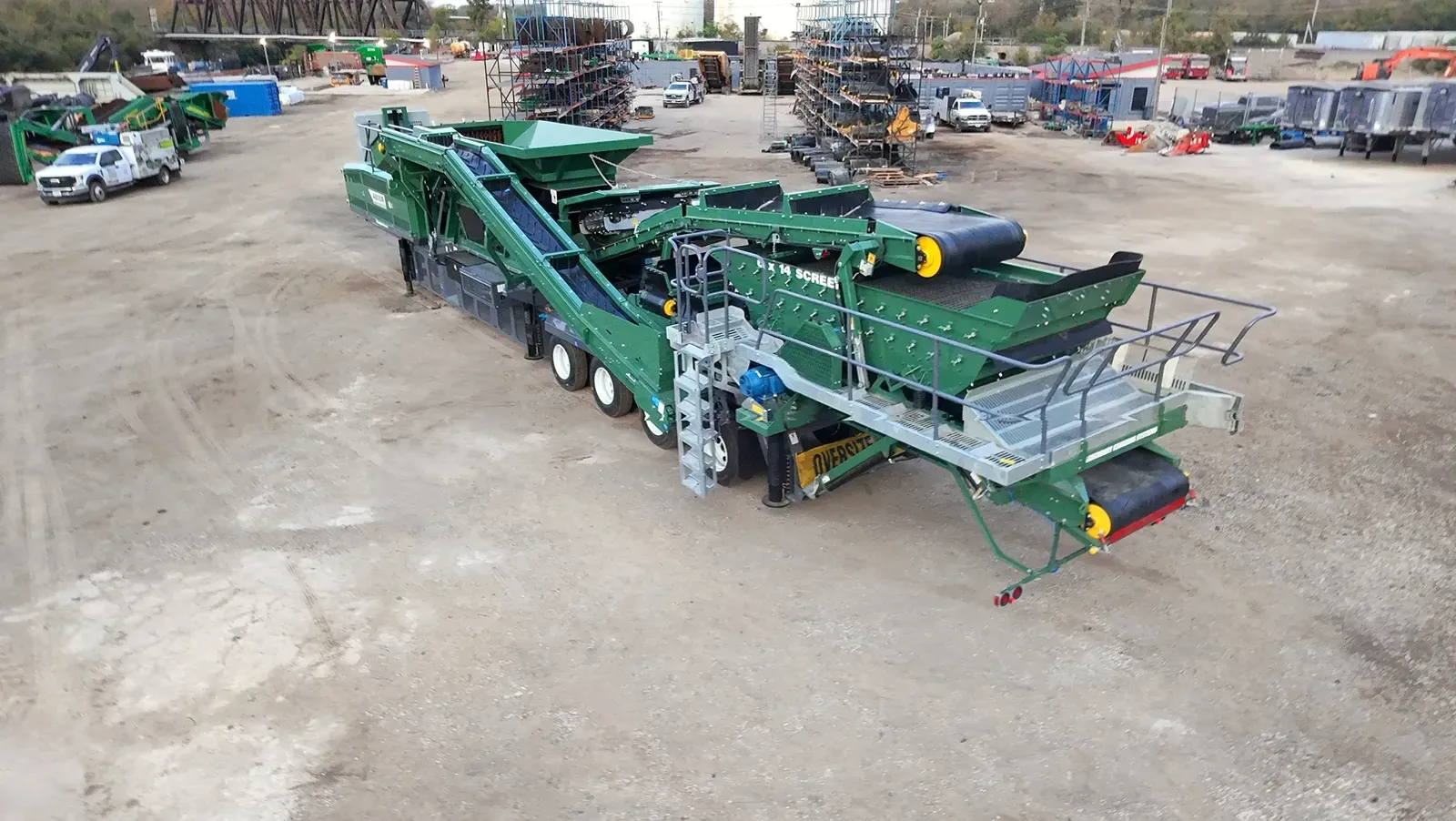

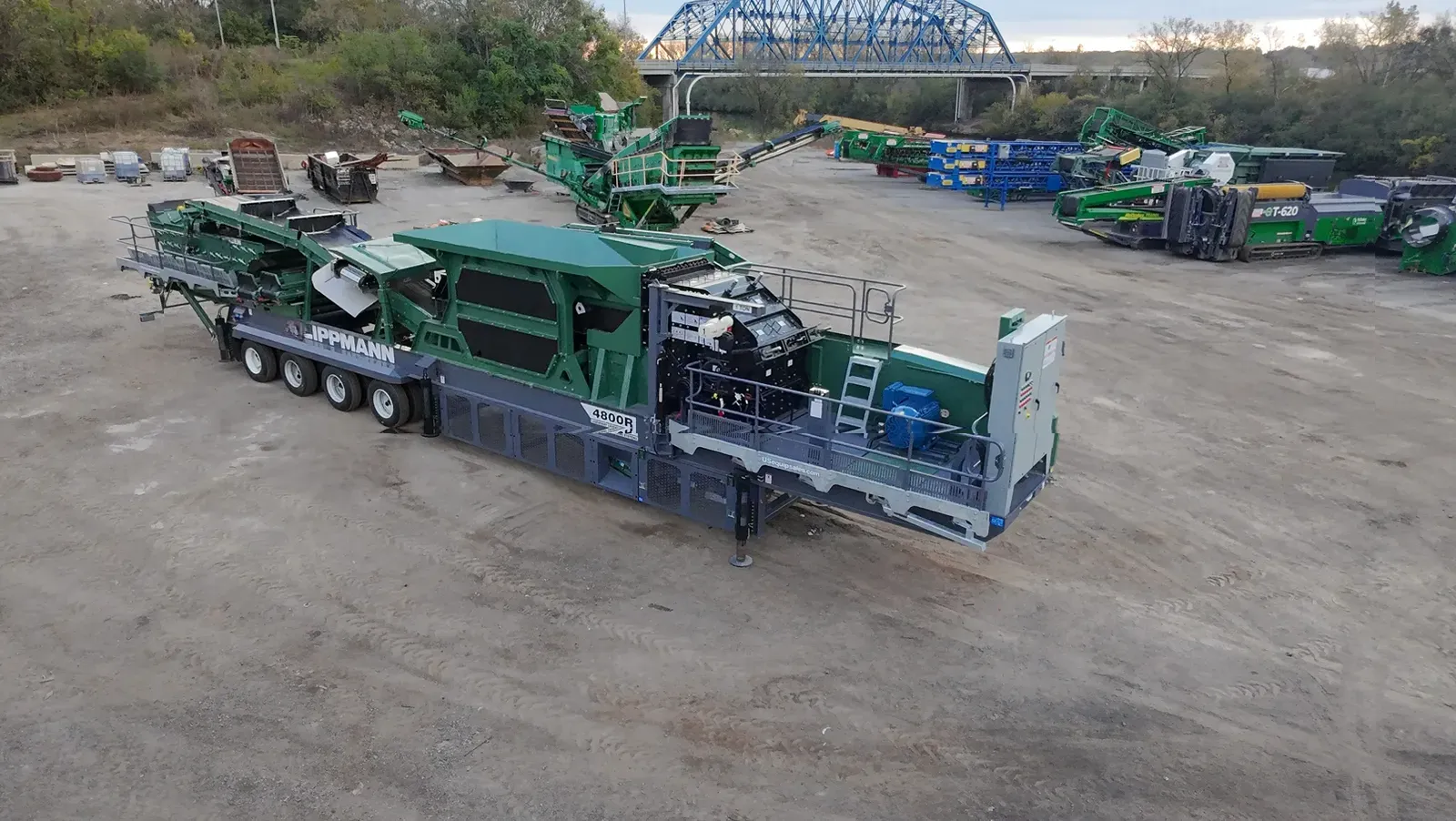

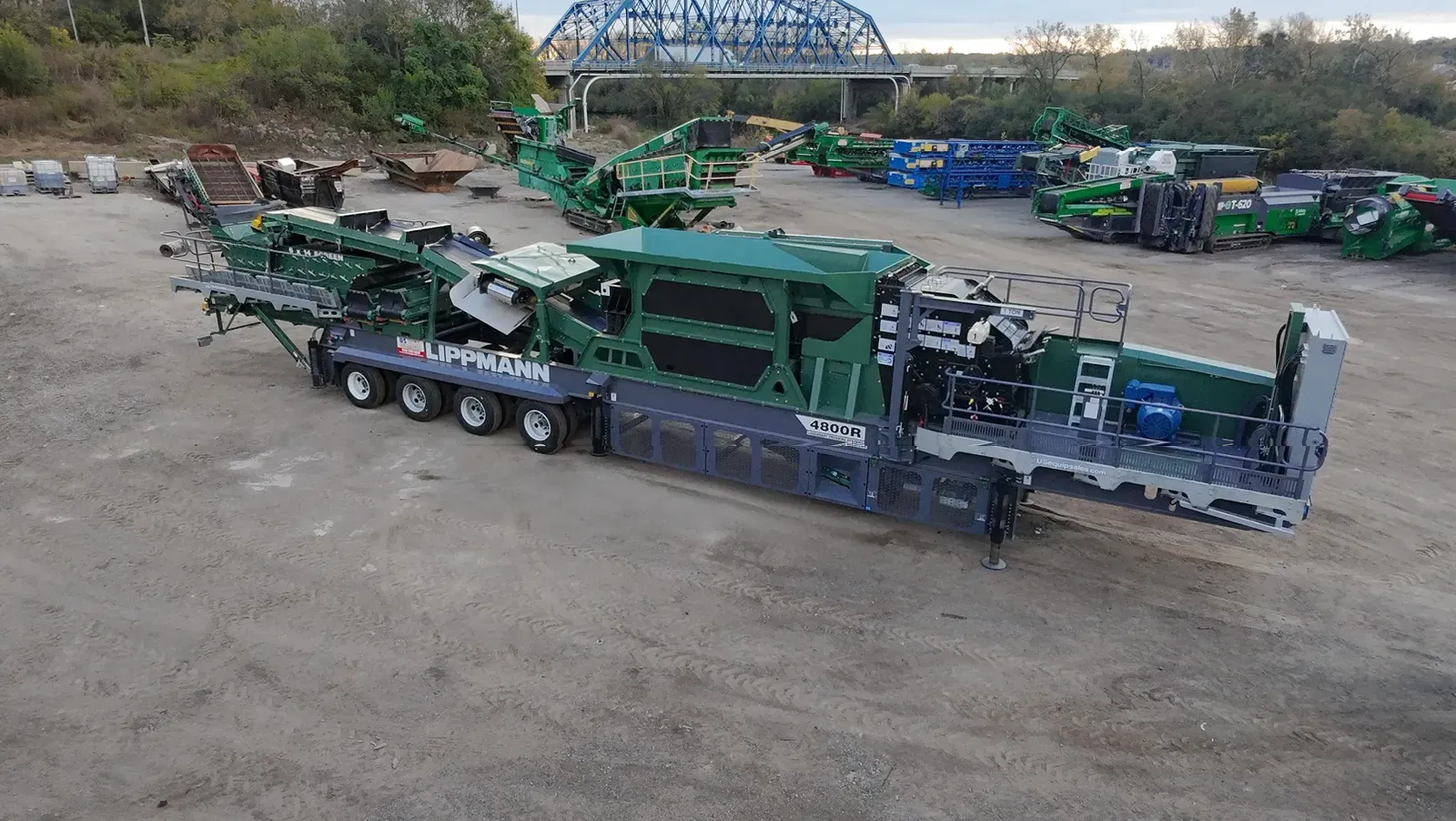

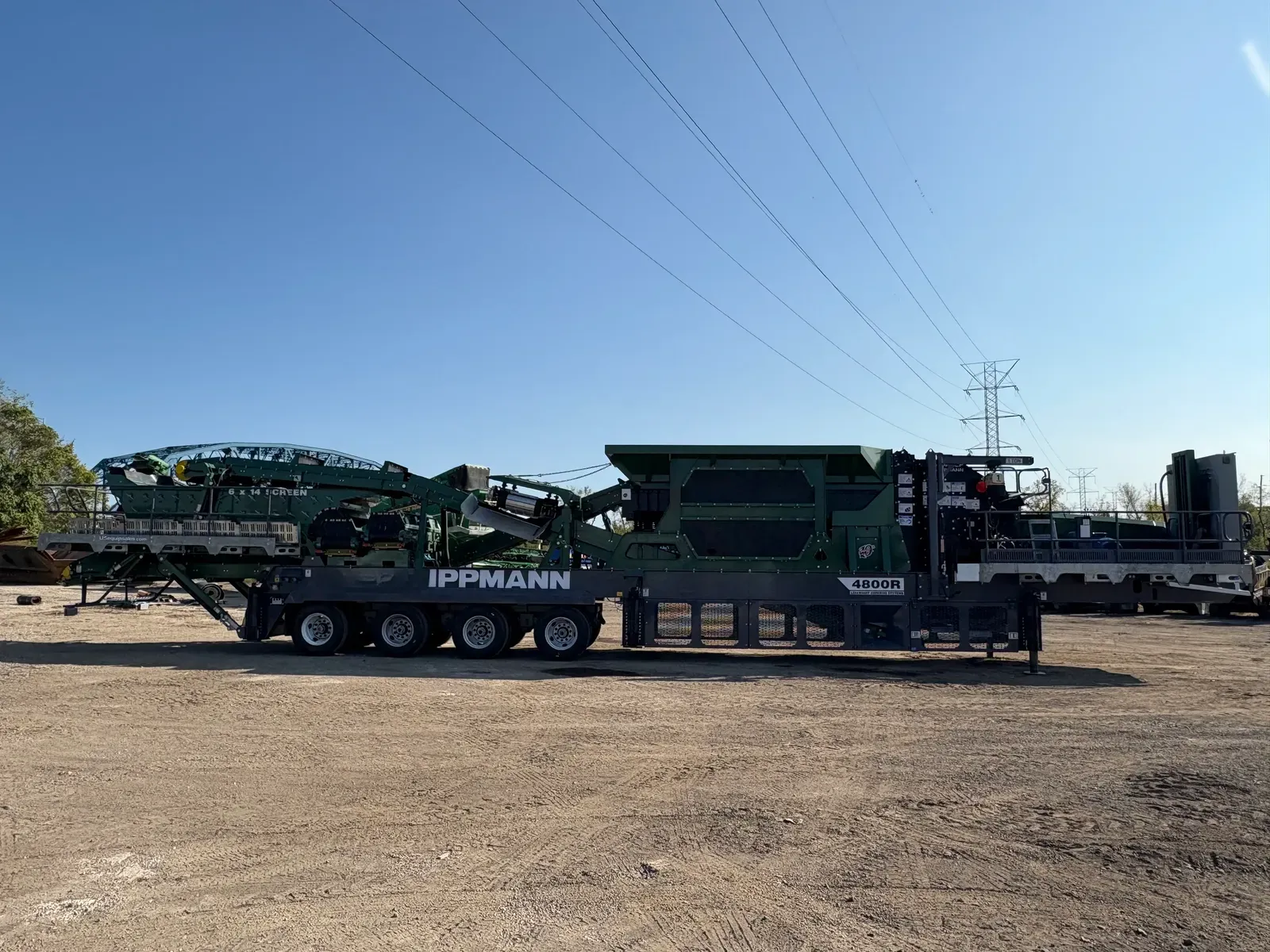

2025 LIPPMANN 4800R

About the Machine

* 2025 Lippmann 4800R Closed - Circuit Impactor Plant - Electric
* 42" x 48" impactor with 4-bar rotor
* 6' x 14' double-deck screen
* Integrated return conveyor for closed-circuit production
* Vibrating grizzly feeder and pan feeder
* Cross-belt magnet for rebar/tramp steel removal
* Dust suppression at crusher inlet
* Six hydraulic run-on jack legs for fast setup
* Ideal for asphalt, concrete, and aggregate crushing
* Transport: 63'74'x11'11"x13'6"
* Weight: 163,000lb
• Andreas-type impact crusher design
• Highly cubical product
• High ratio of reduction
• Hammers have four crushing positions to maintain a more consistent gradation and greater top size control
• No weld build-up required
• One gravity and one spring loaded curtain
• Inspection door on side of machine
• (6) Run-on jack legs
• NEMA 12-motor control center
• Tire bulkheads


SPECS

• Transport Weight - 163000lb
• Engine - 415hp
• Tons Per Hour - Up to 400tphi*Based on an estimation between Limestone and Recycled Material
• Engine - Cat C7.1 Tier 4 Final
• Equipment Type - Impact Crushers
• Production Rate - Up to 400 tph
• Feed Opening - 49"x34"
