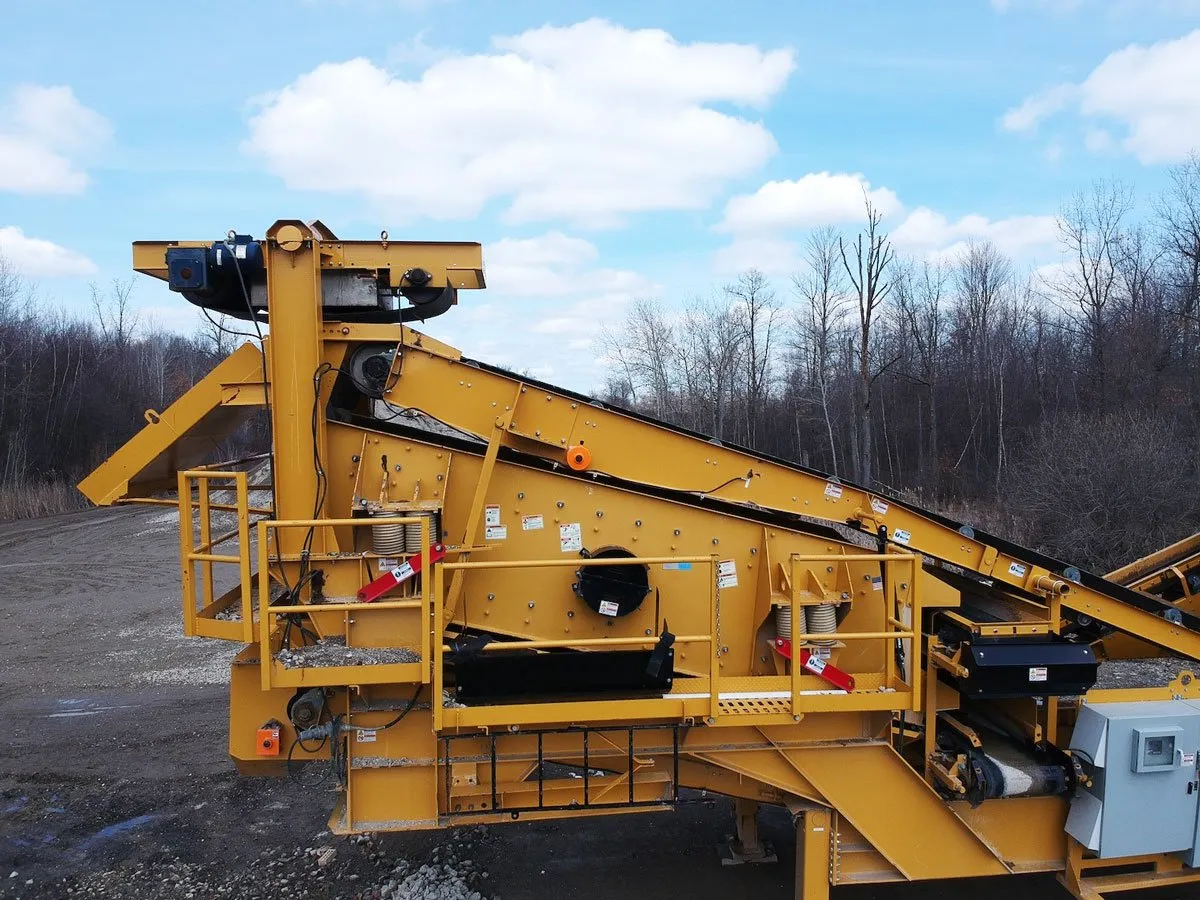

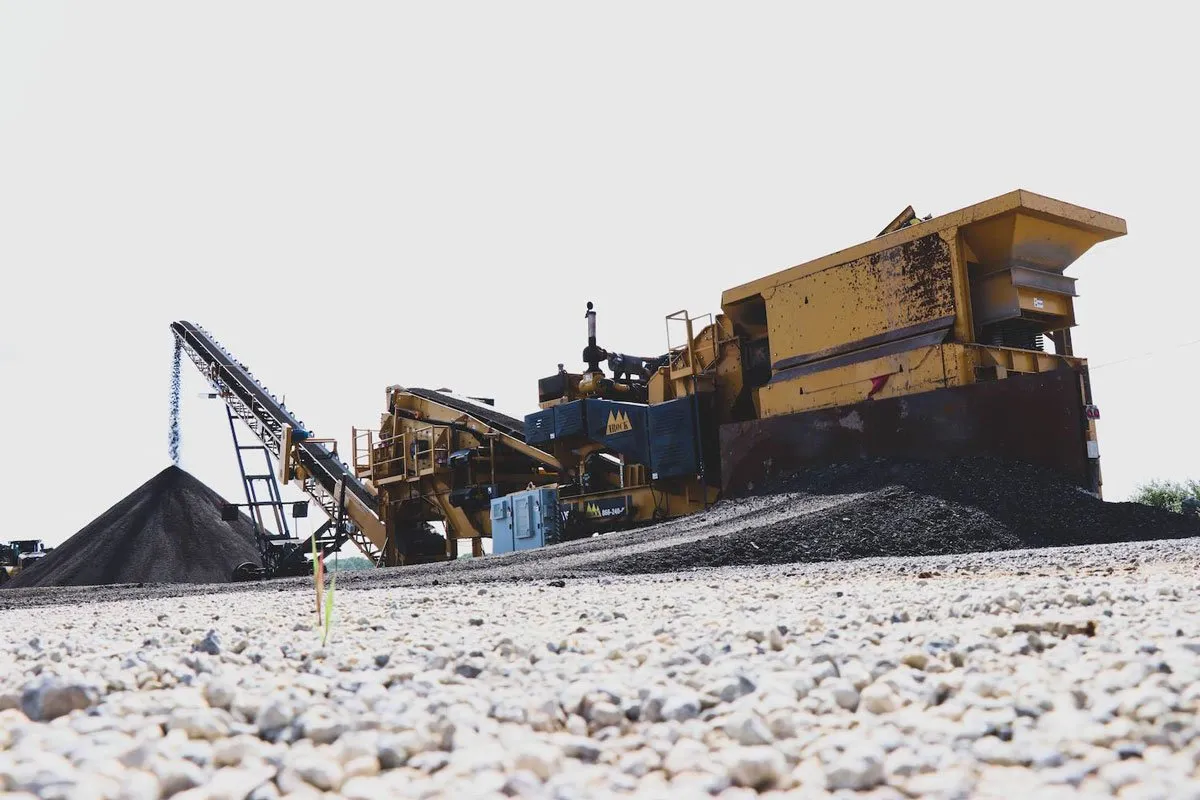

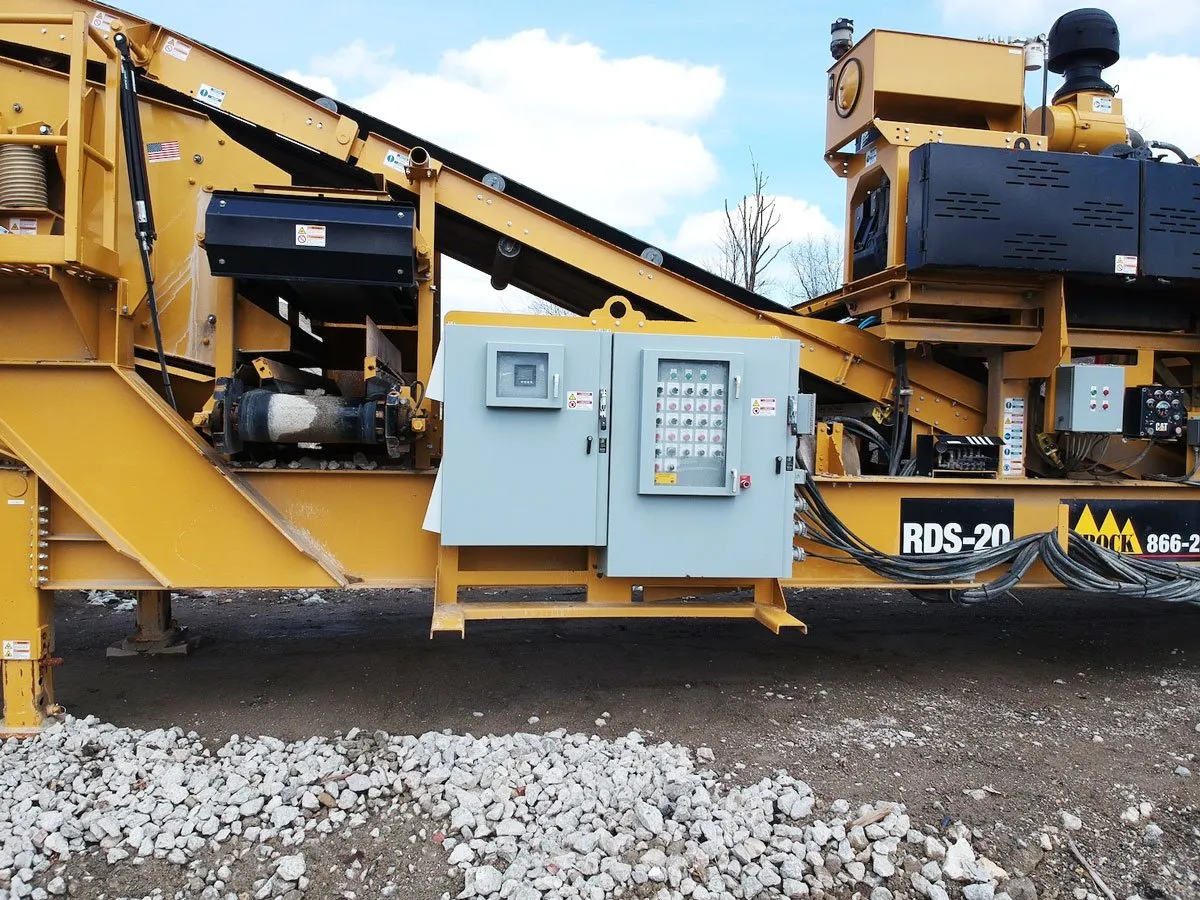

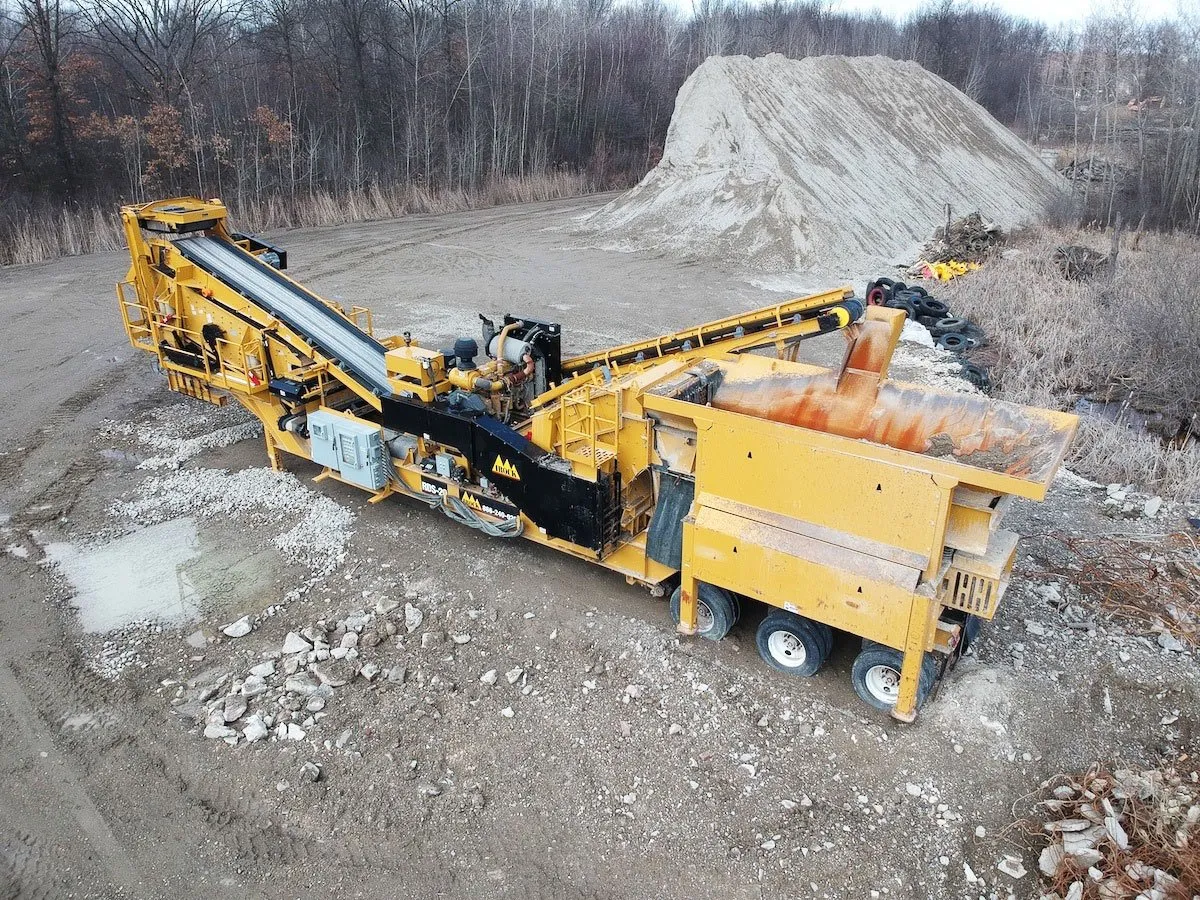

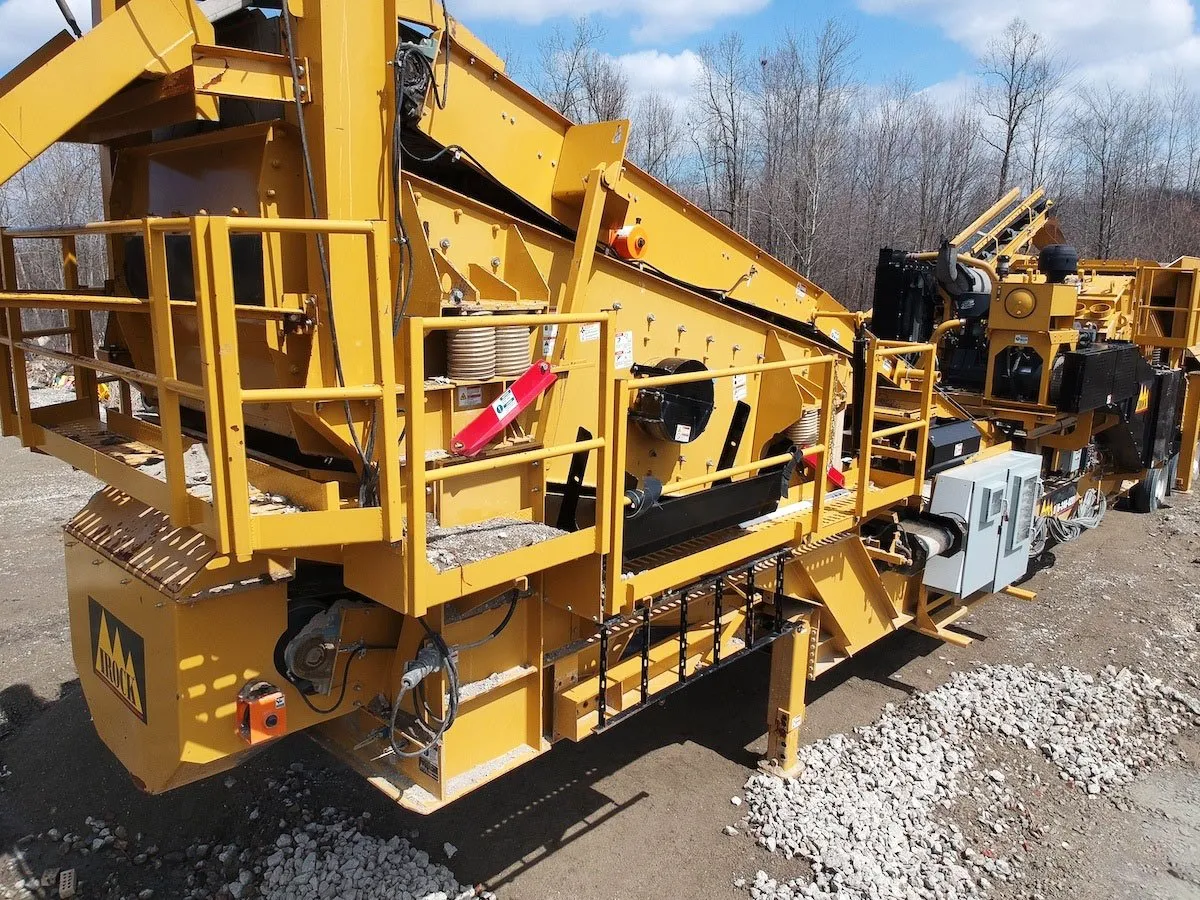

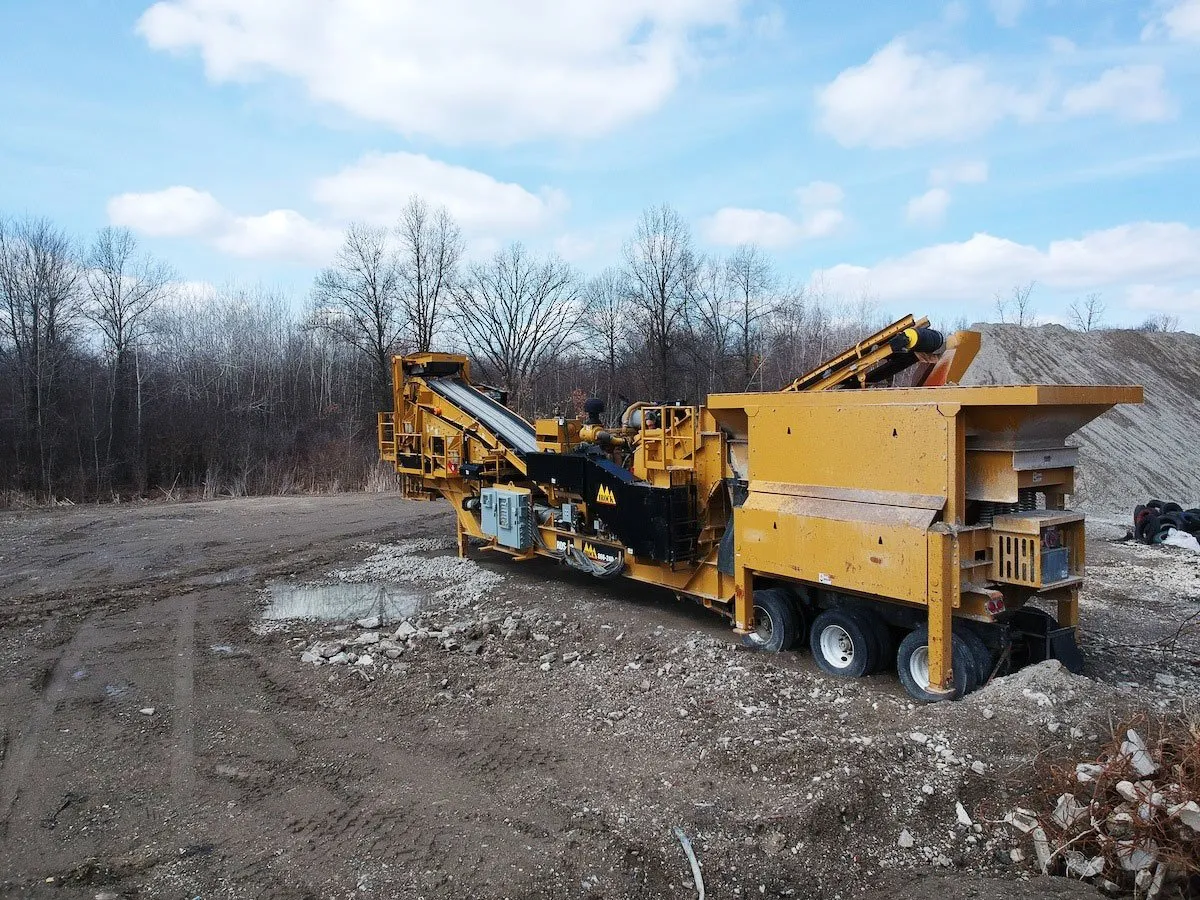

IROCK RDS-20

About the Machine

Easy to move. Simple to operate. Quick to set-up. Ideal for boosting productivity. Our RDS-20 portable horizontal shaft impact (HSI) crusher increases production by up to 20 percent by splitting oversized material to return to the crusher on two decks, rather than one.

RDS-20 Portable Impact Crusher (HSI) Features

• The closed-circuit design can be set to produce a one-sized product by returning the top two screen decks back to the conveyor for further crushing. Operators can also set the machine to produce two sized and one oversized products.
• The optional, patented Hydraset Hopper™ simplifies the connection and removal of the hopper/feeder so just one operator can prepare the unit for transportation in minutes.
• Uses one power source to run a complete crushing operation and three auxiliary outlets.
• IROCK’s exclusive ROCK BOX design reduces the impact on the discharge point by allowing crushed material to build into a natural rock shelf.

Specifications

• ENGINE: CAT® C13 496 HP
• TOP DECK:16 feet by 5 feet
• BOTTOM DECK: 16 feet by 5 feet
• FEEDER SIZE: 52 inches by 17 feet
• ROTOR SIZE: 40 inches by 56 inches
• WEIGHT: 127,300 pounds
