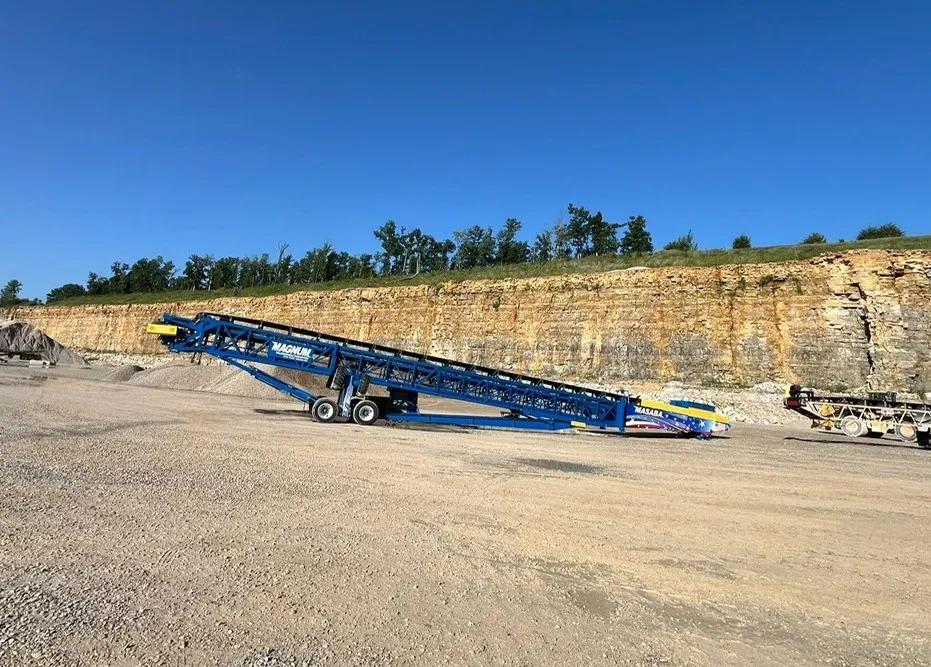

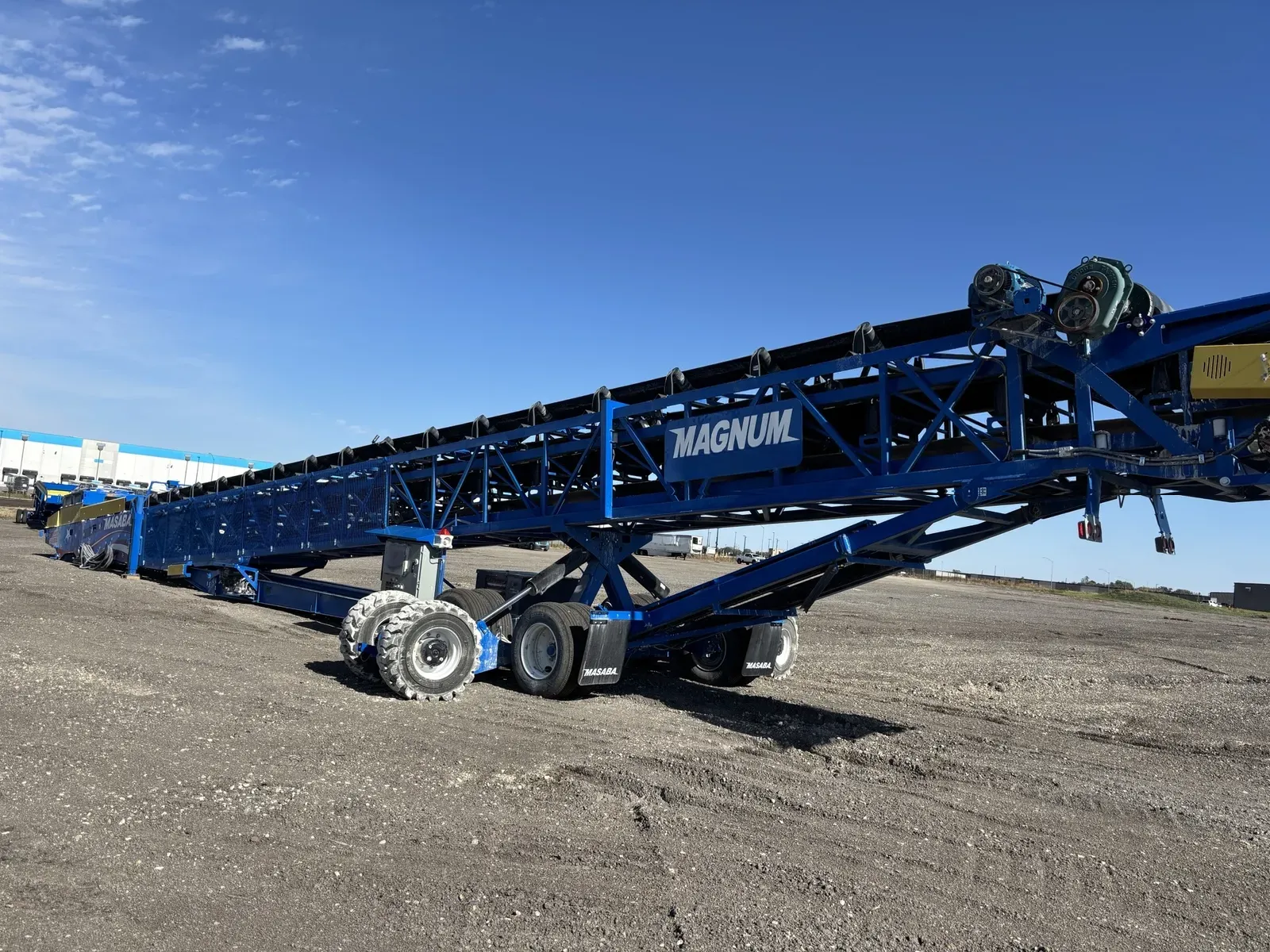

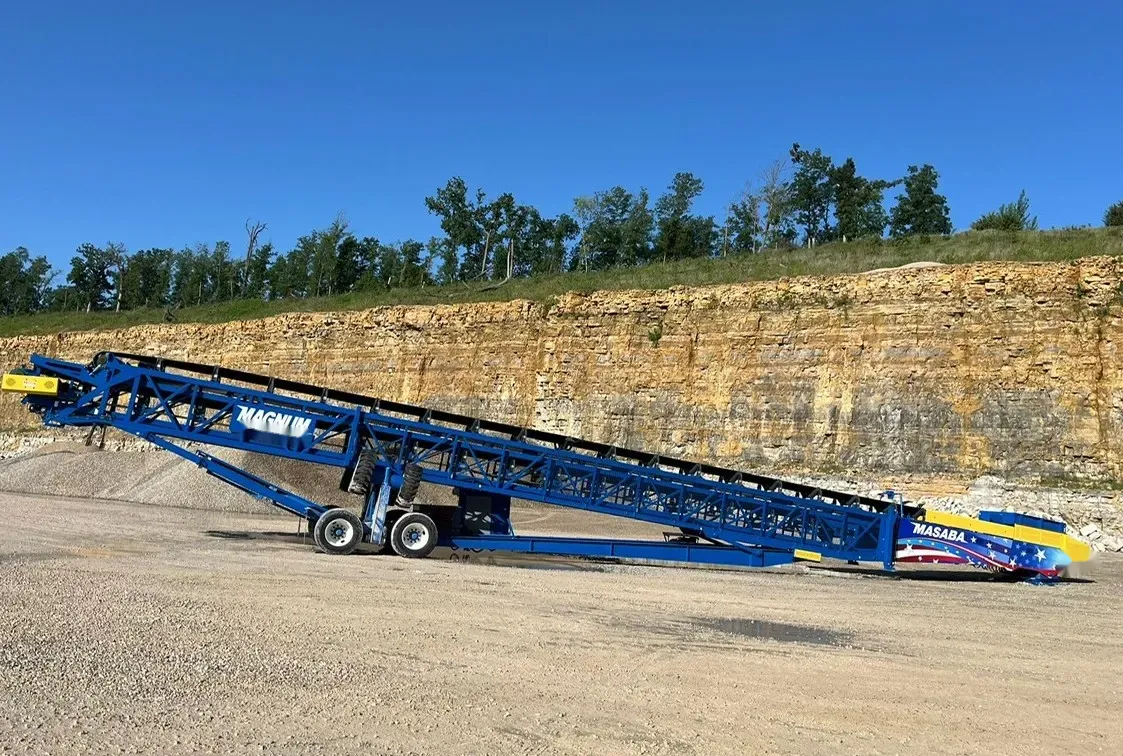

* 2025 Masaba 36x150 Telestacker | Heavy-Duty Portable Stacking Conveyor for High Output * Elec: 480V /60HZ * Tubular Undercarriage * Tandem Axle walking beam * Hydraulic Radial Travel Folding Axle * Hydraulic Raise & Lower with 20HP unit * Hydraulic Landing Legs * Power Travel - 4 wheel planetary drive * On-board counterweight * Masaba Track Technology * 6’ Hopper with adjustable rubber flashing * 5th wheel hitch, brakes, lights and mud flaps * Tail end lifting eyes * Anchor pivot plate * Tail anchor plate * Remote Grease Bank * Appropriate Guarding
» Drives - Class II head end
» WEG 40 HP
» Dodge TAII reducers
» 1,000 TPH based on 100# per cu/ft at 18O
» 400/600 FPM belt speed
» 3 ply belting
» Flexco belt scraper
» CEMA C Idlers, Heavy Duty Pulleys
SPECS
Transport Weight - 69100lb
Engine - 40hp
Tons Per Hour - Up to 3000tphi*Based on an estimation between Limestone and Recycled Material
Hours used - 345hours
Engine - WEG 40 HP
Equipment Type - Stackers, Conveyors, and Feeders
Transport Size - 90'6''x17'9''x13''
Transport Weight - 69100 Â lbs
Production Rate - Up to 3000 tph
Belt Size - 36''x150'
Engine Burns Oil:No
Engine Oil Leaks:No
Conveyor Belts Condition:Good
Engine Parts Condition:Good
Engine Condition: Good
Physical Damage:No
Paint Condition:Good
Rollers:Good
Tracks/Wheels Condition:Good
Pumps and Motor Leaks:No
Hose Leaks:No
Hydraulic System Condition:Good
