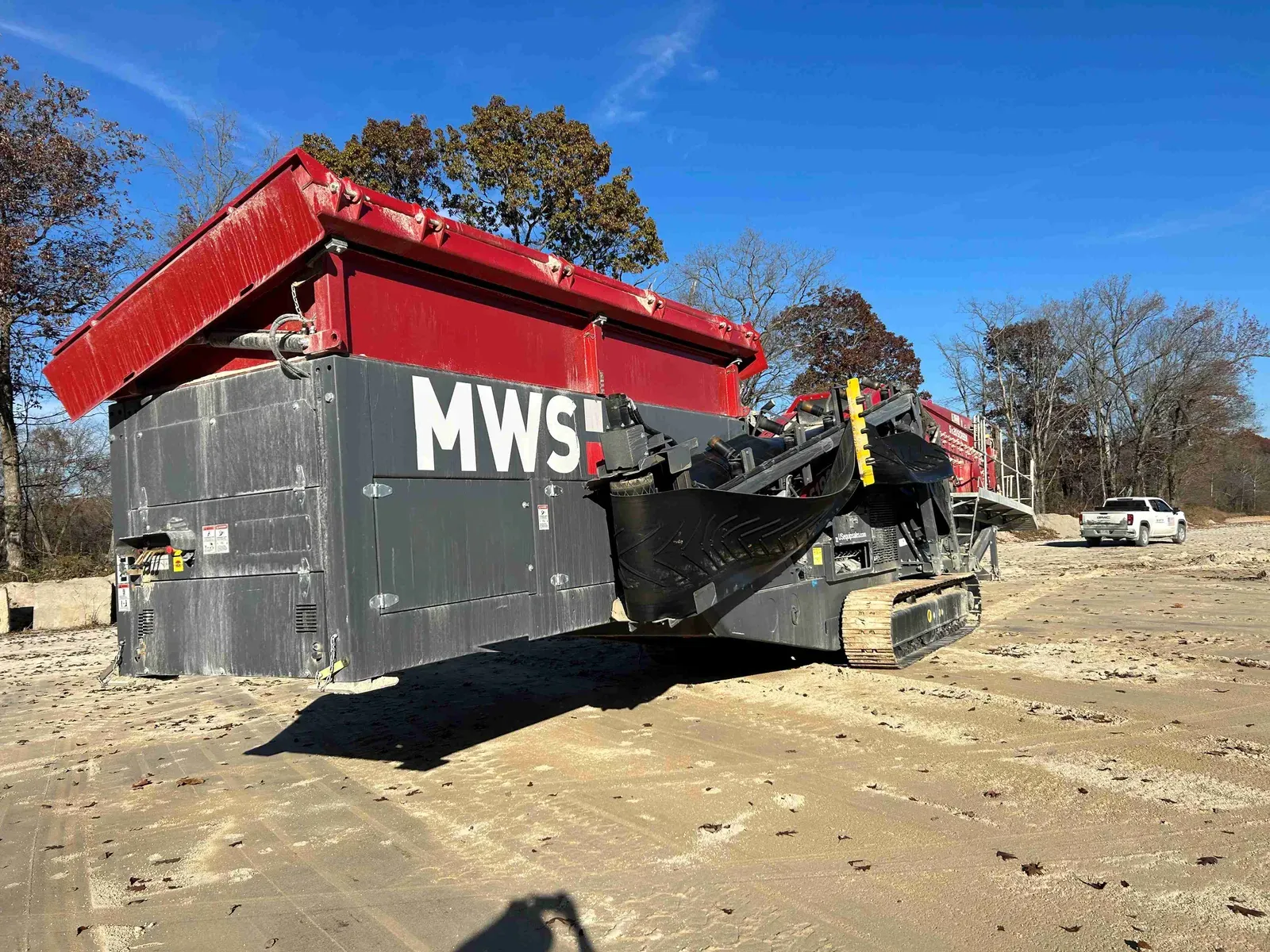

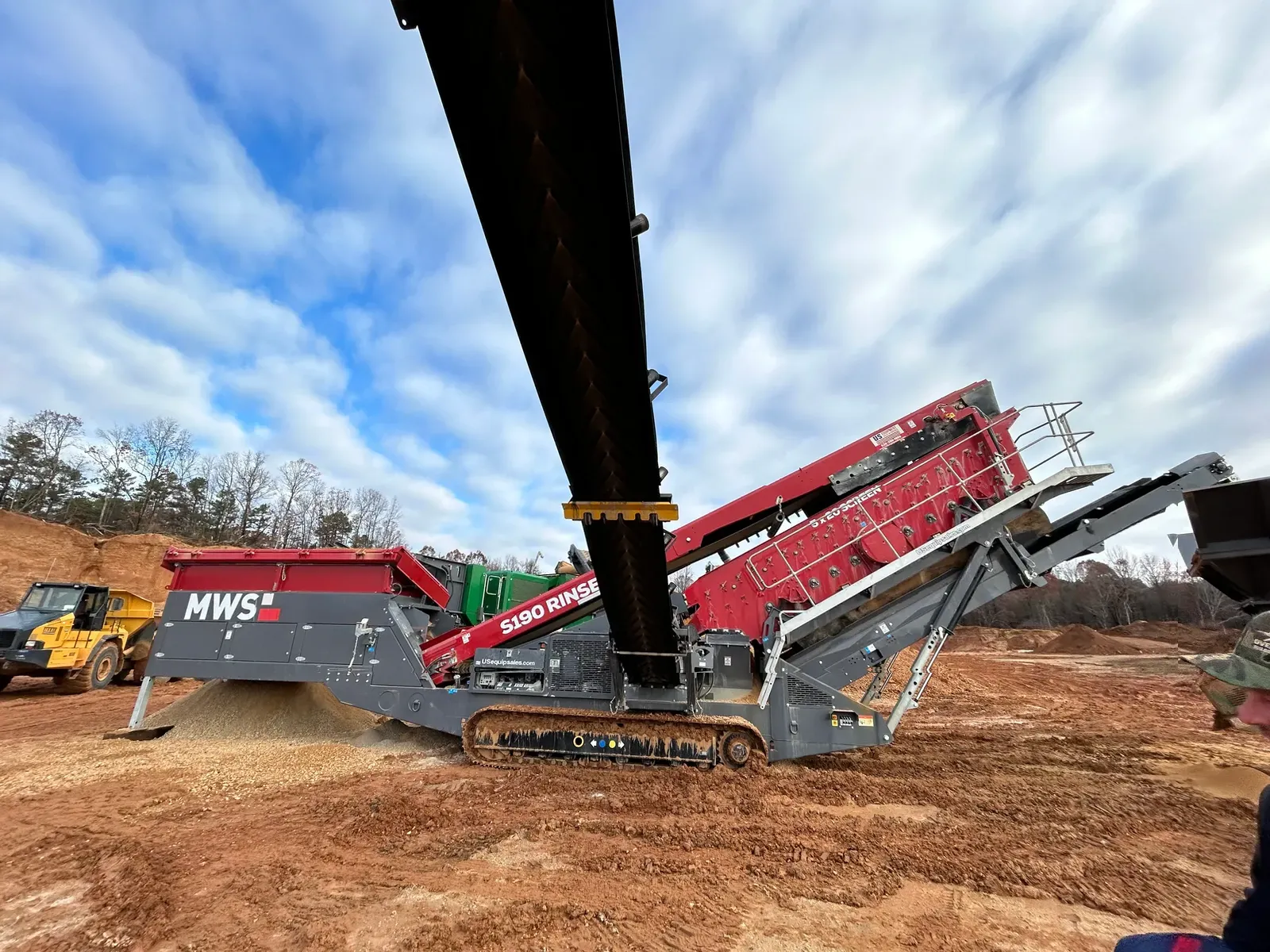

2023 MWS EQUIPMENT S190 3DT

About the Machine

2023 MWS S190 3DT is an excellent choice for material cleaning applications. Manufactured with quality and reliability in mind, this unit has 1765 operating hours and is ready to enhance operations on your job site. This washing system provides thorough material cleaning, removing impurities for higher quality end products. Available for purchase, this used unit offers excellent value for your investment. Reference stock number R895 when inquiring. Contact US Equipment Sales today for more information, additional photos, or to schedule an inspection.

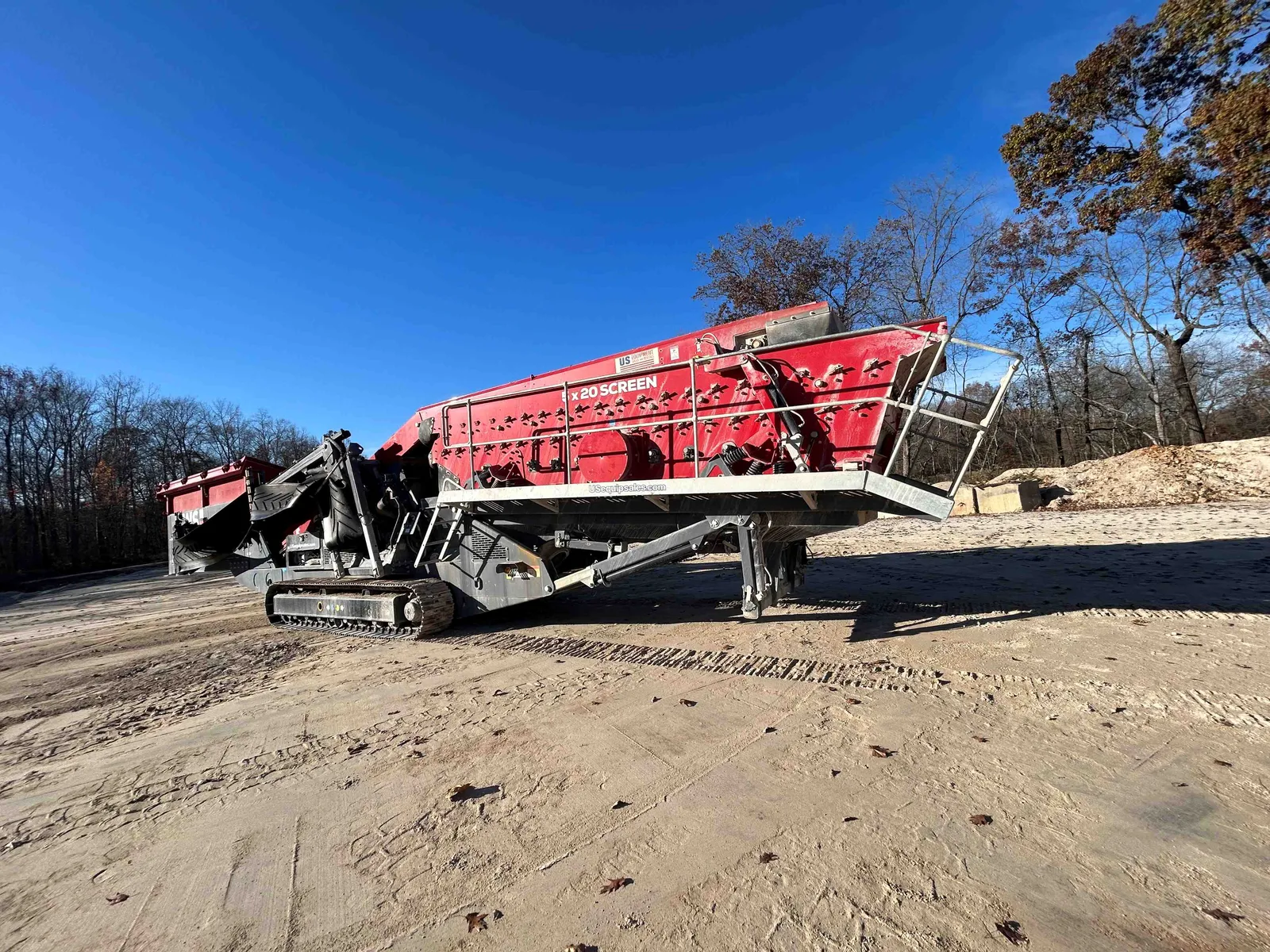

*20' x 5' heavy duty high energy 2 bearing rinser screen box.
*CAT C4.4 131Hp engine.
*Integrated hydraulic folding stockpiling conveyors.
*Remote control tipping grid.
*Fast on site setup time – 10 minutes.
*Recommended flow and pressure - 4100 to 6100 lpm (1100 to 1600 us gal/min)/2 bar (30 psi) at manifold.
*Easily converted to dry screen mode.
*8 independently controlled spray bars on each deck.
*Extra coupling facility to run additional equipment such as MWS sand screws and stackers.
*Hydraulic catch box - allows user to easily lift and lower the catch box.
*Large screen deck - 20’ x 5’ top & middle deck, 18’ x 5’ bottom dec
‍
SPECS
Transport Weight - 79750lb
Engine - 134hp
Tons Per Hour - Up to 1607tphi*Based on an estimation between Limestone and Recycled Material
Hours used - 2285hours
Engine - CAT T4F C4.4 131HP
Transport Size - 59'2''x10'8''x11'4''
Transport Weight - 79750  lbs
Production Rate - Up to 1607 tph
